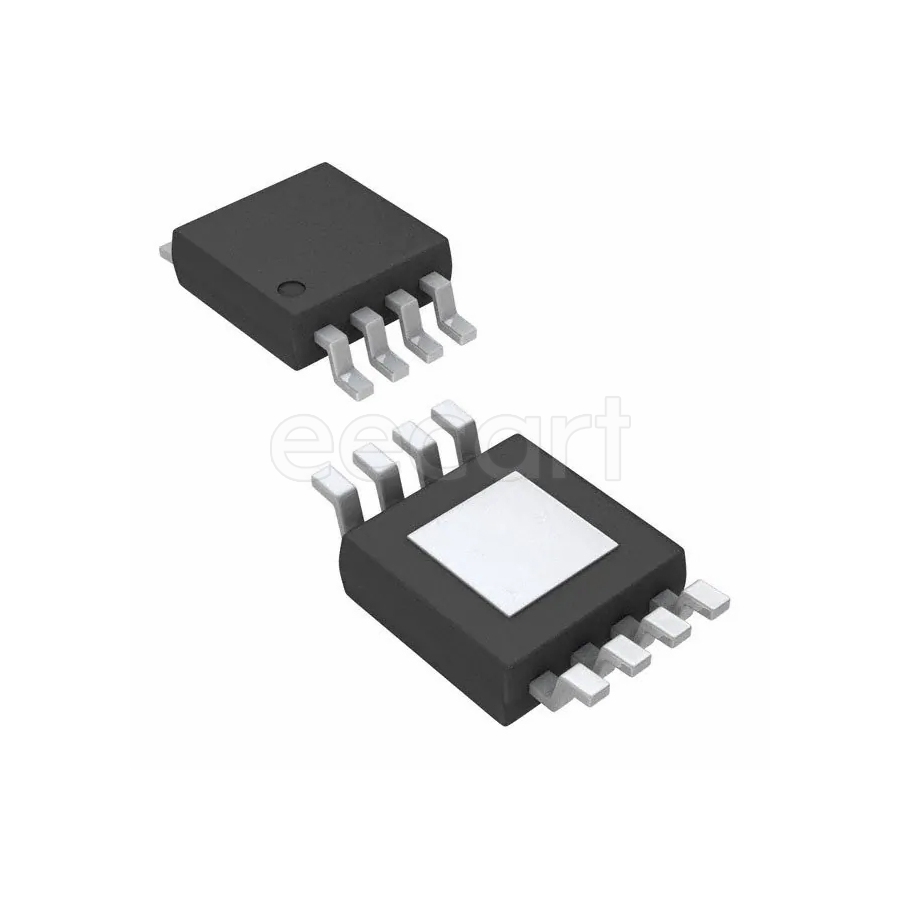

AP2511MP-13
Manufacturer:
Diodes Incorporated
Mfr.Part #:
AP2511MP-13
Datasheet:
Description:
Power Switch ICs - Power Distribution MSOP-8 EP SMD/SMT Turn-On Delay Time:100 µs Turn-Off Delay Time:100 µs 78 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | High Side |
| Interface | On/Off |
| Output Current | 2.5 A |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Output Type | P-Channel |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Max Output Current | 2.5 A |
| Number of Channels | 1 |
| Turn-On Delay Time | 100 µs |
| Turn-Off Delay Time | 100 µs |
| Number of Inputs | 1 |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Fault Protection | Over Temperature, Reverse Current |
| On Resistance (RON) | 78 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 3.7 A |
Stock: 5938
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.13423 | $1.34230 |
| 50 | $0.12675 | $6.33750 |
| 100 | $0.11969 | $11.96900 |
| 500 | $0.10516 | $52.58000 |
| 1000 | $0.09660 | $96.60000 |
